Name: IEC60065 Figure 13 Finger Children Test Probe 19 To Test Whether The Hazardous Parts Can Be Touched
Brand: HongCe
Price: 1 USD

Brand Name : HongCe

Model Number : HT-I13

Certification : Calibration certificate(cost additional)

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Delivery Time : 10 days

Packaging Details : Aluminum box

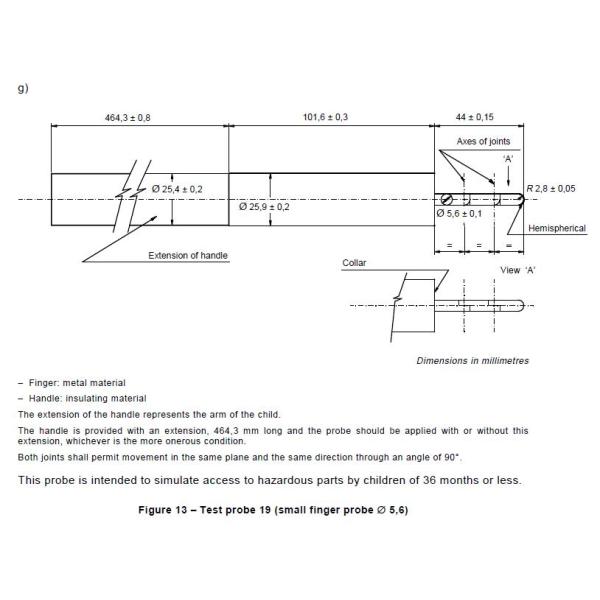

Hemispherical : R2.8±0.05

Finger probe diameter : Ф5.6±0.1

Finger probe length : 44±0.15

Joint distance : 14.67

Axes of joints diameter : Ф25.9±0.3

Axes of joints length : 101.6±0.3

Contact Now

IEC 60065:2014 clause 9.1.1.3 Children Test Probe 19

Standard:

Conforms to IEC 60065:2014 clause 9.1.1.3, IEC61032 figure 13 finger probe 19, IEC335.1,UL1017.

Application:

It is used to simulate the children who are younger than 36 months to test whether the hazardous parts can be touched.

Test sample:

Easily accessible enclosure live parts or mechanical parts.

Feature:

Can be combined with the push-pull gauge to achieve force of 10N load test.

Parameters:

Picture for reference:
